120mm OD. 22mm Bore. 3CM. Addtional 10% off.

Set of CNC Diamond Profile Wheels Shape F (OG)

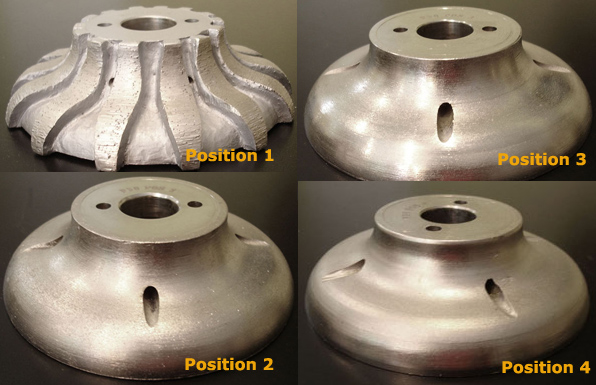

This is a set of profile wheels with F (OG) profile specifically made for CNC machines. The set has 5 pcs including position 1 - 40 grit, position 2 - 120 grit, position 3 - 270 grit, position 4 - 400 grit and a polishing wheel 600 grit. Position 1 is segmented. Position 2, 3, 4 are continuum and position 5 is silicon carbide polishing wheel.


- 120 mm in OD
- 22 mm Bore
- 30 mm Thickness
- Perfectly Balanced
- Qualify for additional 10% off when check out

Operating parameters:

Position Grit RPM Removal Rate Feed Rate
1 40 3000 2.0 - 2.5 mm(milimeter) 0.8 - 1.5 MM(Meters/Min.)
2 120 3000 0.6 - 1.0 mm 0.8 - 1.5 MM(Meters/Min.)
3 270 3000 0.4 - 0.8 mm 1.0 - 2.0 MM
4 400 3000 0.2 - 0.3 mm 0.8 - 1.3 MM
5 600 2500 0.002 mm / 50-60 MM 0.8 MM

Price: $1,550.00
